SL Series Hydraulic Torque Wrench

For all low clearance applications, the SL Series hydraulic torque wrenches provide power, accuracy and safety. This new slim design allows for even greater access and is ideal for use on applications with limited overhead access or with fasteners having excessive thread protrusion. With a flush powerhead to ratchet link design and 360 deg uni-swivel assembly, the SL line is the most flexible product available to work in tough to access applications.

  • New slim design for even greater access in low clearance applications
  • Inline reaction surface eliminates torsion
  • Supplied with high quality Cejn couplers (quick connect and threaded available)
  • Various cassettes, adaptors, reducers and reaction arms are available
  • 360 deg uni-swivel allows for maximum flexibility in confined spaces
  • Interchangeable cassette heads for range of hexagon sizes
  • Accuracy +/-3%, 10,000PSI max working pressure
  • 5 different models from 164 ft.lbs to 32398 ft.lbs
SL Series Low Profile Wrench

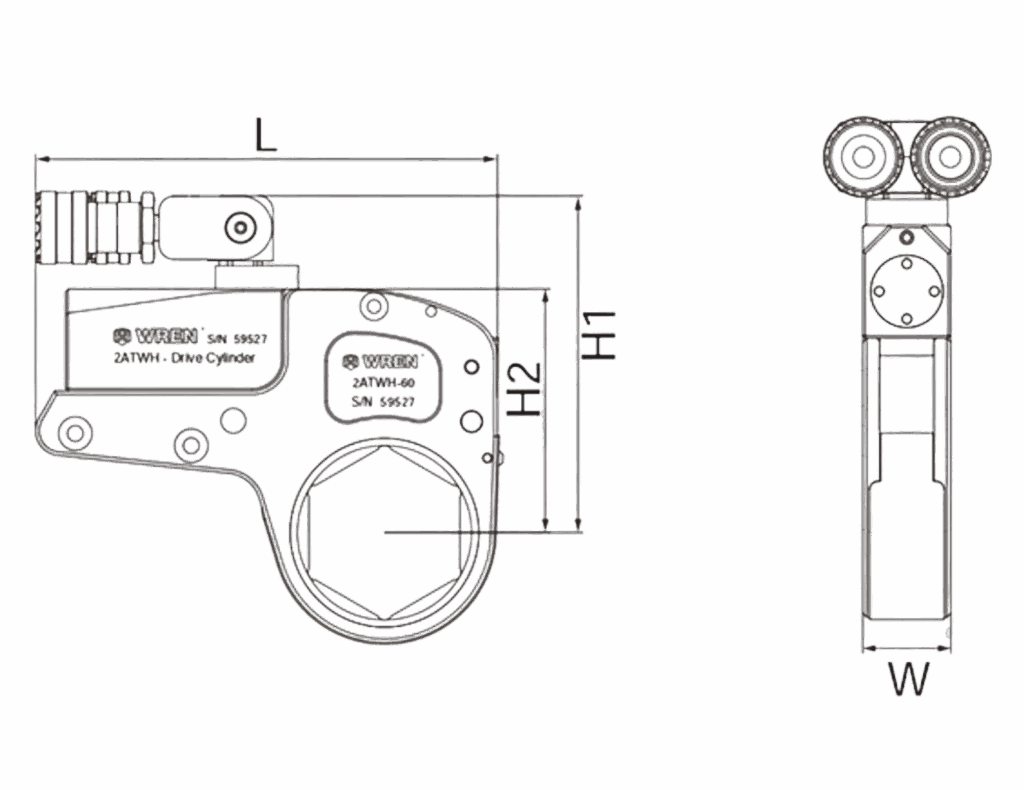

SL Series Low Profile Wrench line art
Part NumberTorque (ft.lbs)SW (Inch)Drive Cylinder
(lbs)
Cassettes (lbs)LH1H2W
SL2164 – 1638
170 – 1698
7/8″ – 2.3/16″
2.3/8″
2.0
2.0
3.3
3.7
7.32
7.32
5.20
5.31
3.74
3.86
1.26
1.26
SL4378 – 3783
417 – 4170
1.5/8″ – 2.9/16″
2.3/4″ – 3.1/8″
4.6
4.6
8.6
9.5
9.49
9.69
6.93
7.32
5.00
5.39
1.69
1.69
SL8758 – 7582
758 – 7582
816 – 8160
1.5/8″ – 2.15/16″
3.1/8″ – 3.11/16″
3.7/8″ – 4.1/4″
8.2
8.2
8.2
13.0
13.0
13.9
11.42
11.42
11.69
8.11
8.11
8.46
6.14
6.14
6.50
2.09
2.09
2.09
SL141346 – 134562″ – 4.5/8″14.125.114.219.417.442.52
SL303043 – 30426
3240 – 32396
4.5/16″ – 6.1/8″
6.1/2″ – 6.7/8″
28.7
28.7
39.7
45.2
16.54
16.93
11.93
12.40
10.71
11.22
3.35
3.35
